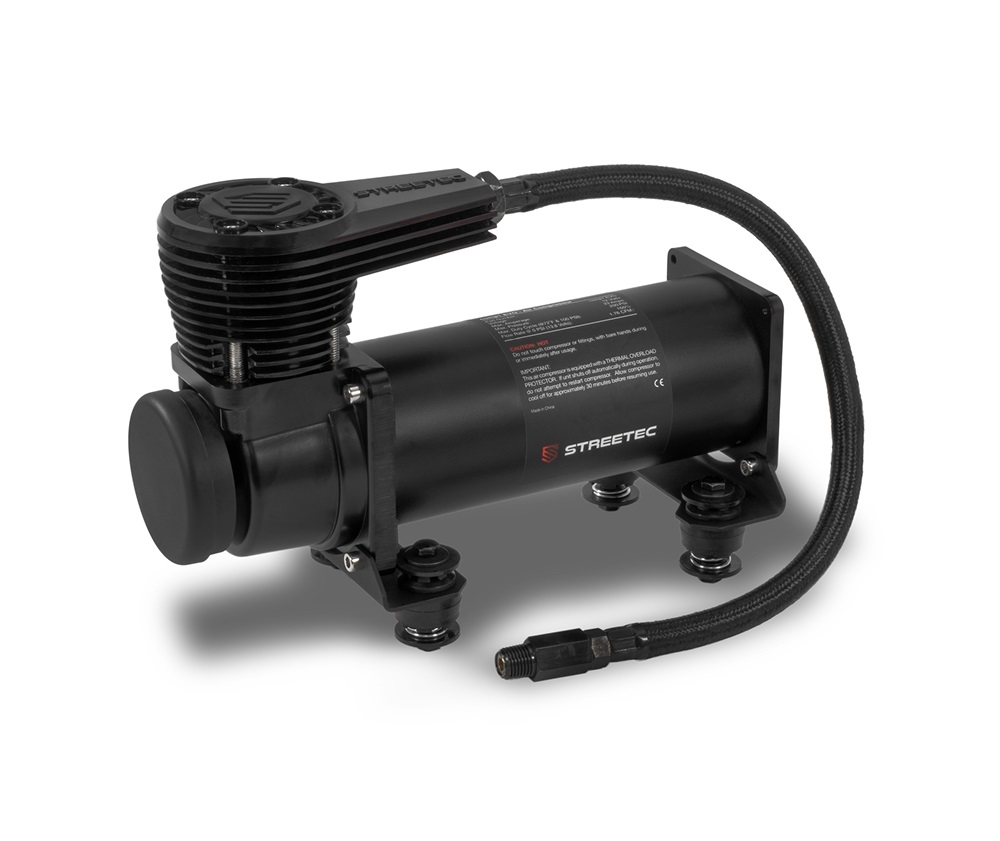

Streetec comp2 EVO kompressori

Features:

Duty Cycle: 100% @ 100 PSI (6,9 bar)
Flowrate: 2,54 CFM
Maximum pressure: 200 PSI = 13,8 bar
Fuse: 40A (not included)
L / W / H = ca. 27,5 cm / 10,5 cm / 17 cm
Black 1/4-stainless steelleader line with check valves



To ensure a problem-free operation of the compressor, the following points must be checked:

The compressor may only be operated with a 40A fuse! A higher or lower amperage of the fuse is not permissible. If you install multiple compressors, each compressor needs its own fuse.
The compressor may only be installed and operate in a water and heat protected area.
The compressor is a dry rotor and therefore does not require any lubrication oil.
The compressor may only be operated with a fully functional and fully charged vehicle battery, otherwise the coil of the compressor may be damaged by the high starting current (if the voltage is too low).
Ensure sufficient attachment and conductivity of the ground cable from the compressor to the body.
Always ensure sufficient fresh air supply.
